51 34 160 Removing and installing/replacing housing cover front left or right door window frame

Necessary preliminary tasks

• Open side window.
• Remove REAR DOOR TRIM PANEL .

If necessary, pull off hooks (1) in outward direction.

Release cover (2) at retainers (3).

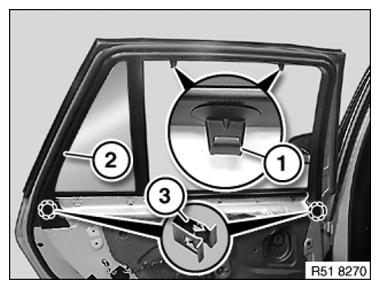

Fig 1: Identifying Rear Door Window Frame Cover, Hooks And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip cover (1) in direction of arrow, lever out and remove.

Installation:

Make sure cover (1) is correctly seated on seal (2).

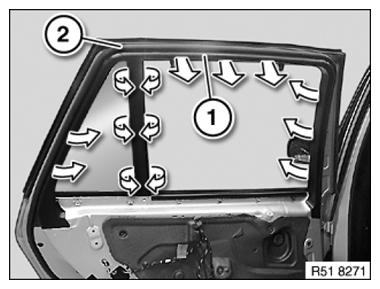

Fig 2: Removing Door Window Frame Cover

Courtesy of BMW OF NORTH AMERICA, INC.
