51 16... Removing and installing/replacing side carpet on storage compartment (center console)

NOTE: Driver's seat removed for purposes of clarity.

Release screw (1).

Release retaining clips (3).

Feed side carpet (2) towards front out of center console.

Installation note:

Replace faulty retaining clips (3) and clamps (4).

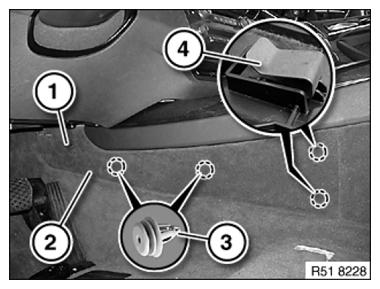

Fig 1: Identifying Centre Console Side Carpet, Retaining Clips, Clamps And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Feed side carpet (1) towards front out of center console.

Installation note:

Replace faulty clamps (2).

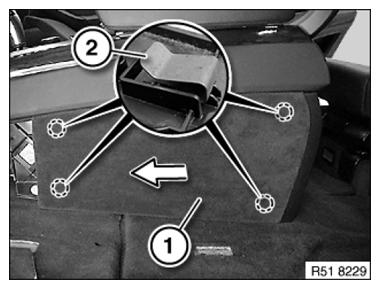

Fig 2: Removing Side Carpet From Centre Console

Courtesy of BMW OF NORTH AMERICA, INC.
