51 45 185 Removing and installing/replacing panel for pedals

Release screws (1).

Feed out trim for pedal assembly.

Disconnect associated plug connections and remove trim for pedal assembly.

Replacement:

Remove FOOTWELL LIGHT .

If necessary, remove SPEAKER FOR HANDS-FREE SYSTEM .

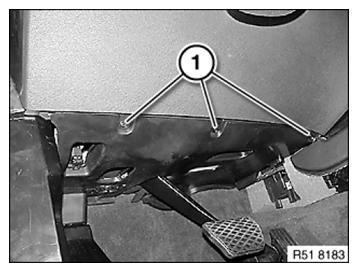

Fig 1: Identifying Pedal Assembly Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Additionally on Security (optional extra SA 106):

Remove intercom system speaker.
