51 71 412 Removing and installing/replacing rear spoiler

Special tools required:

Necessary preliminary tasks

Release screws (1) with washers (2).

Unscrew nuts (3).

Lever out seal plugs (4) and release nuts underneath.

Tightening torque 51 71 1AZ .

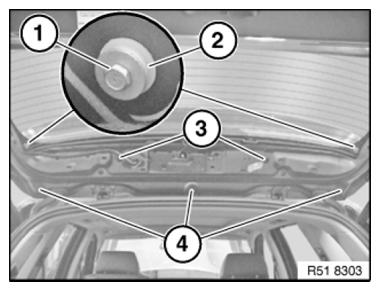

Fig 1: Identifying Seal Plugs, Screws, Washers And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1 and 5).

Disconnect hose (2).

Raise rear spoiler slightly and feed out grommets (3 and 4).

Remove rear spoiler.

Installation:

Make sure grommets (3 and 4) are correctly seated

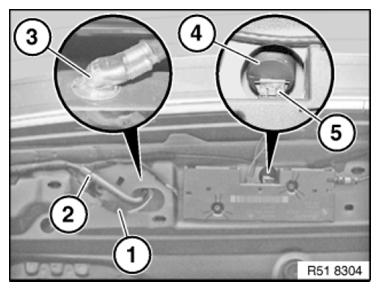

Fig 2: Identifying Plug Connections, Grommets And Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Always replace clips (1).

Following parts must not be damaged or missing:

(2) 2 x felt (12 x 20 mm)
(3) Studs (for adjusting rear spoiler)
(4) Slide element

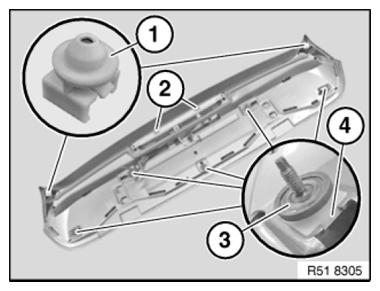

Fig 3: Identifying Rear Spoiler, Slide Element And Clips
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Rear spoiler must be secured with cable tie (1) to outer slide elements (2) on left and right.

Retrofit if necessary.

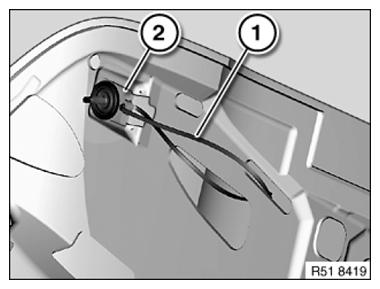

Fig 4: Identifying Cable Tie And Outer Slide Elements

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Adjusting rear spoiler:

Press on rear spoiler (1) and measure negative protrusion of rear spoiler (1) to rear window (2) with special tool 51 0 010 .

= 1 ± 1 mm
If necessary, adjust rear spoiler (1) by means of stud (3).

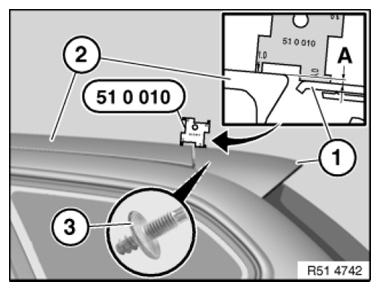

Fig 5: Measuring Negative Protrusion Of Rear Spoiler To Rear Window Using Special Tool (51 0 010)
Courtesy of BMW OF NORTH AMERICA, INC.
