67 62 020 Removing and installing/replacing flat motor for rear left or right power window unit

Necessary preliminary tasks

Remove REAR POWER WINDOW UNIT .

Release screws (1) and detach flat motor (2) from power window unit.

Installation:

Retaining pins (3) must not be released!

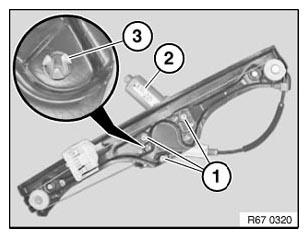

Fig 1: Identifying Flat Motor, Mounting Screws And Pins

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: To ensure tension-free installation of flat motor, observe the specified screwing sequence.

Tighten first screw (1), then screw (2) and finally screw (3).

Tightening torque 67 62 1AZ .

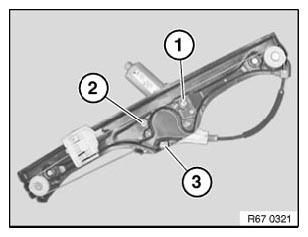

Fig 2: Identifying Power Window Unit Flat Motor Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

A normalization must be carried out in order to activate anti-trapping protection.

Normalization sequence:

Ensure adequate system voltage.
All doors closed.
Press correspond power window switch in "Close" position and hold for approx. 2 seconds with window closed.

NOTE: If normalization is unsuccessful or the power window unit malfunctions, it will be necessary to carry out normalization via the control unit functions in the diagnosis system.

Front power window: Footwell module.
Rear power window: Junction box.
