52 13 040 Removing and installing/replacing outer cover on left or right front seat (normal/semi-electric)
Normal version (basic):

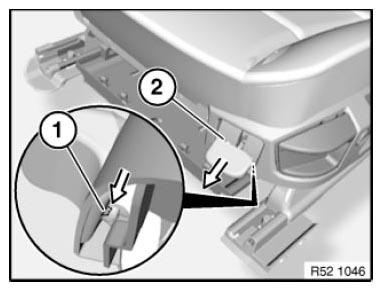

Pull lever forward to remove:
- If necessary, lever out lower locking point (1) from rear with a screwdriver.
Release screw (2).
If necessary, move seat fully forwards and upwards.
Semi-electric version:
Unclip cover instead of lever (2).
Release screw (2).

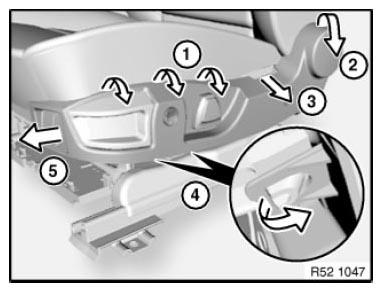

Remove trim:
- Unclip at top edge
- Unclip at rear towards top side
- Pull on belt opening
- Unlock lugs
- Carefully remove trim towards front
Unfasten plug connection.
Replacement only:
Remove lumbar support and set adjustment switch.

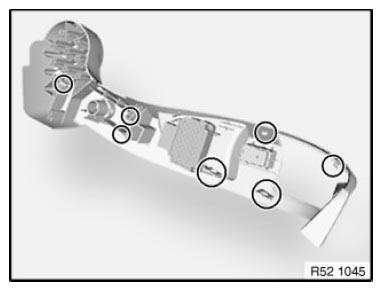

Installation note:
Retaining clips and tabs must not be damaged.
