52 14 040 Removing and installing/replacing outer cover on left or right front seat

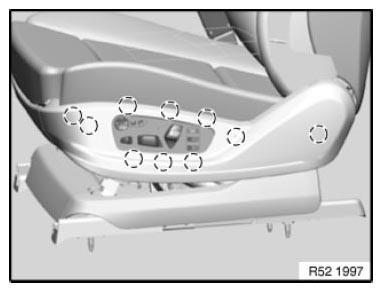

Overview of all attachment points of cover.

Fig 1: Overview Of Attachment Points Of Cover

Courtesy of BMW OF NORTH AMERICA, INC.

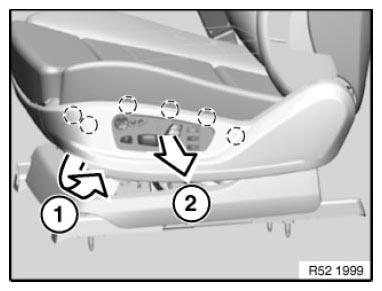

Unclip cover (1) from front cover.

Fig 2: Removing Cover From Front Cover

Courtesy of BMW OF NORTH AMERICA, INC.

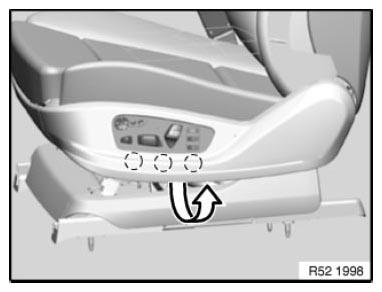

Unclip cover from lower latch mechanisms.

Pull cover toward rear and unclip on sides.

Fig 3: Removing Cover From Lower Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip cover from front latch mechanisms.
Unclip cover from upper latch mechanisms by twisting upward.

Fig 4: Removing Cover From Front Latch Mechanisms
Courtesy of BMW OF NORTH AMERICA, INC.

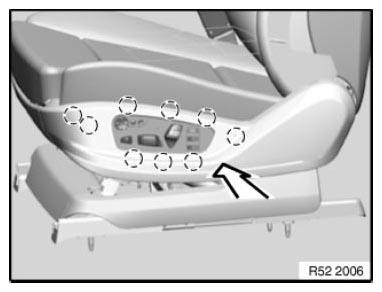

Remove cover in direction of arrow.

Installation note:

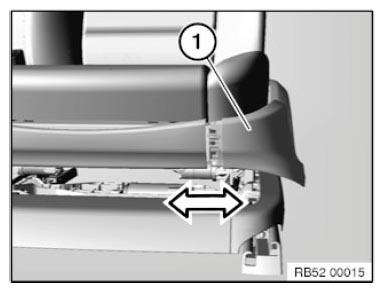

First insert clip (1) in seat mechanism.

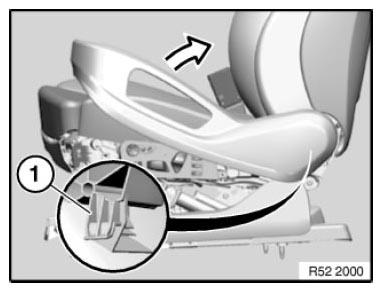

Fig 5: Removing Seat Mechanism Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note overview of last operation:

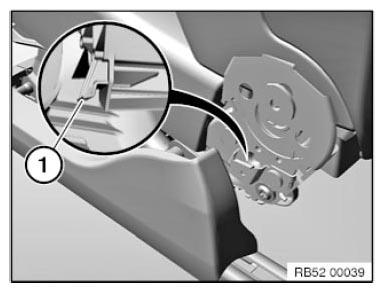

Apply felt to inside of clip (1).

Clip (1) must be correctly seated in seat mechanism.

Fig 6: Identifying Seat Mechanism Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

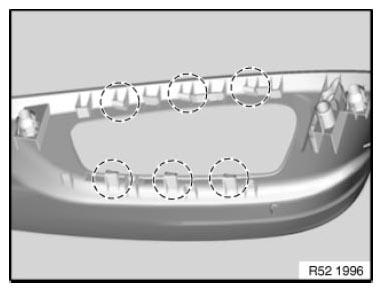

Retaining clips for cover must not be damaged.

If necessary, replace faulty cover.

Fig 7: Identifying Retaining Clips On Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

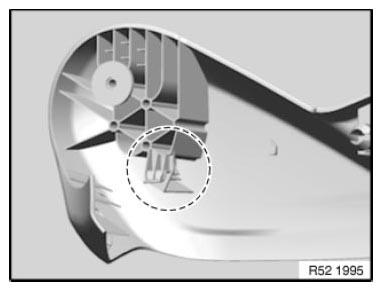

Clip for cover must not be damaged.

If necessary, replace faulty cover.

Fig 8: Identifying Cover Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Insert felt-covered clip into rear seat mechanism.

Position cover straight and insert in front cover trim.

Clip in cover from rear to front.

Clip cover in front cover trim.
