52 17... Removing and installing/replacing left or right thigh support

Release screws (1).

Disconnect plug connections (2).

Remove thigh support (3) towards top.

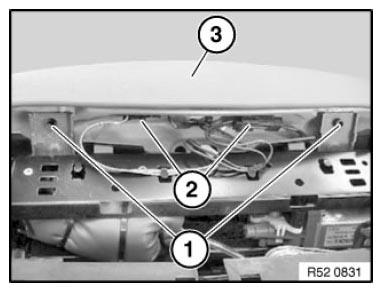

Fig 1: Identifying Plug Connections, Thigh Support And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, unclip trim (1) towards top and remove.

Installation:

Secure guide pins (2) in seat frame and clip trim (1) into place.

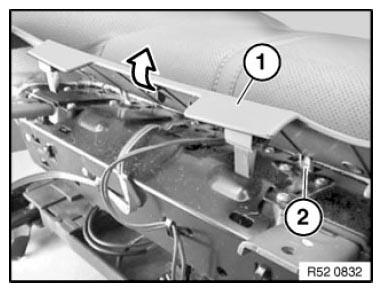

Fig 2: Removing Seat Frame Cover

Courtesy of BMW OF NORTH AMERICA, INC.
