52 17 415 Replacing padding for left or right front seat (comfort)

The operation for removing the padding with/without OC3 mat is described in:

• Replacing SEAT COVER FOR FRONT SEAT .
• Removing SENSOR MAT .

Remove sensor mat (1).

Seat with air conditioning:

Remove dividing net (2).

Remove fan (3) from support (4).

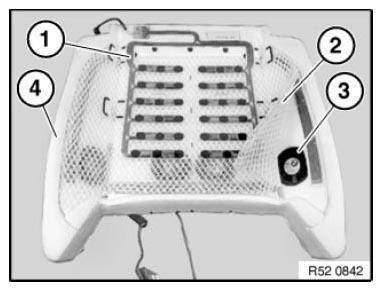

Fig 1: Identifying Sensor Mat, Dividing Net, Fan And Support

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure fans have correct cable routing (1).

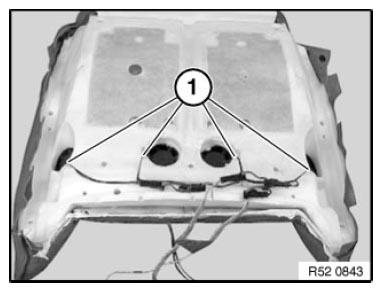

Fig 2: Identifying Cable Routing

Courtesy of BMW OF NORTH AMERICA, INC.
