51 24 145 Removing and installing/replacing button for tailgate activation

Special tools required:

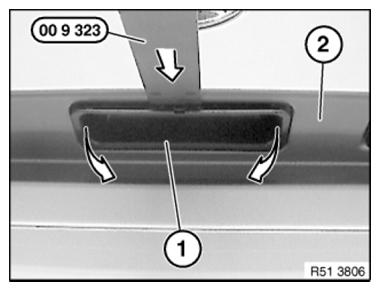

Slide special tool 00 9 323 under the front edge of button (1) and lift button (1) out.

Pull button (1) out of rear lid (2).

Fig 1: Pulling Button Out Of Rear Lid Using Special Tool (00 9 323)

Courtesy of BMW OF NORTH AMERICA, INC.

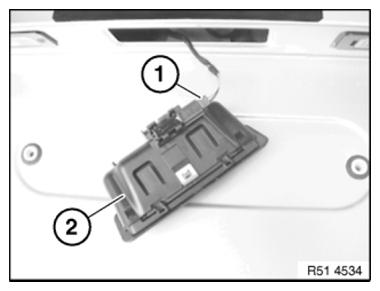

Unplug connector (1) and remove button (2).

Installation note:

Perform function check with tailgate open.

Fig 2: Identifying Tailgate Activation Button And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

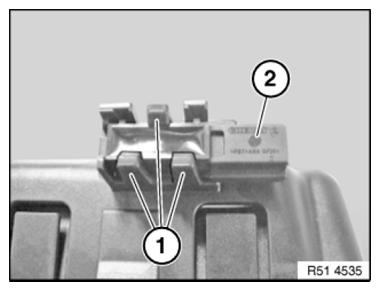

Carefully release latch mechanisms (1) and remove microswitch (2).

Fig 3: Identifying Microswitch And Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.
