61 62 030 Removing and installing/replacing wiper arm on rear window

Special tools required:

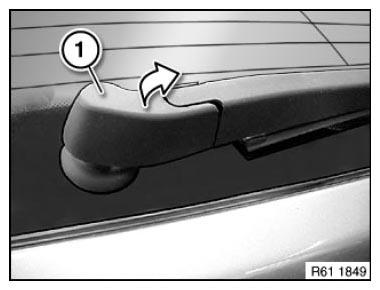

Fold up cover cap (1) in direction of arrow.

Release nut underneath.

Tightening torque 61 62 2AZ .

Fig 1: Folding Up Cover Cap

Courtesy of BMW OF NORTH AMERICA, INC.

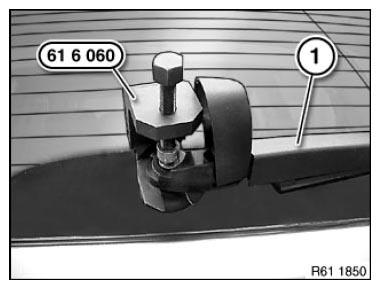

Press off wiper arm (1) with special tool 61 6 060 and remove.

Fig 2: Pressing Off Wiper Arm With Special Tool (61 6 060)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Before fitting wiper arm, allow wiping system to run two wipe cycles into park position.

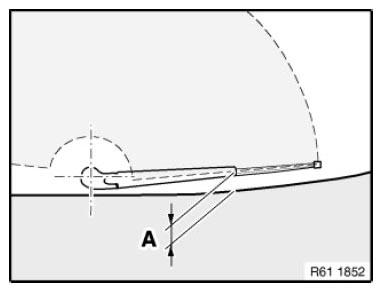

Adjust MEASUREMENT (A) between wiper arm and rear window edge.

Fig 3: Identifying Measurement Between Wiper Arm And Rear Window Edge

Courtesy of BMW OF NORTH AMERICA, INC.
