61 31 229 Removing and installing/renewing both switches on sport steering wheel

Necessary preliminary tasks

NOTE: Steering wheel shown removed for purposes of clarity.

Release screws (1).

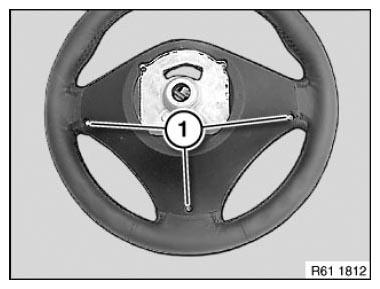

Fig 1: Identifying Steering Wheel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Version - shift paddles for automatic transmission:

Release screws (1).

Disconnect plug connections (2).

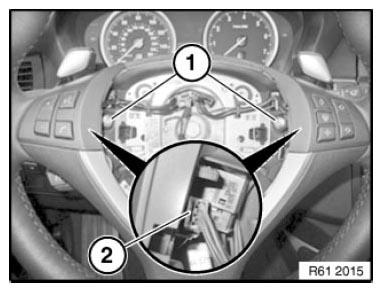

Fig 2: Identifying Plug Connections And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Both sport steering wheel switches (1) are connected to each other by the wiring harness.

Disconnect plug connections (2).

Detach switches on sport steering wheel (1) with design cover (3) in direction of arrow from steering wheel.

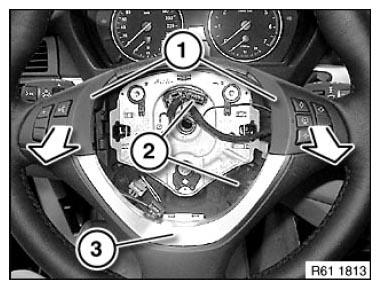

Fig 3: Detaching Switches On Sport Steering Wheel With Design Cover From Steering Wheel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure wiring harnesses are correctly routed.

Make sure switches on sport steering wheel (1) with design cover (3) are correctly seated on steering wheel.

Release screws (1).

Feed wiring harness (3) out of design cover (4).

Remove switches on sport steering wheel (2) from design cover (4).

Installation:

Make sure wiring harness (3) is correctly laid on design cover (4).

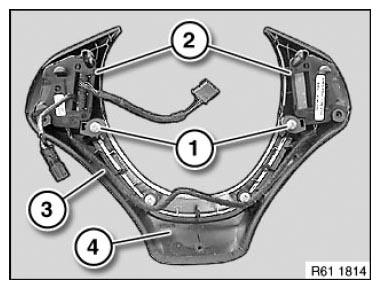

Fig 4: Identifying Sport Steering Wheel, Design Cover, Wiring Harness And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
