Fitting dimensions (E70)

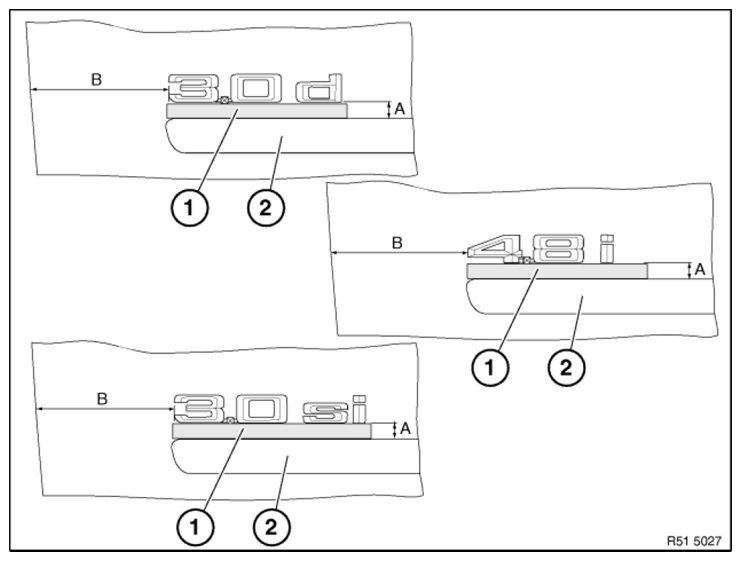

Fig 1: Identifying Model Designation Sticking Position
G08528886Courtesy of BMW OF NORTH AMERICA, INC.

Stick on adhesive tape (1) according to measurement "A" to trim strip (2).

Mark measurement "B" from top edge to adhesive tape (1).

Position model designation and stick down.
