63 10... Adjust the fog lights (with electronic headlight adjustment device MAHA Lite 3)

Comply with test prerequisites for headlight adjustment!  See 63 10... TEST REQUIREMENTS FOR HEADLIGHTS VERTICAL AIM ADJUSTMENT  or 63 10... TEST REQUIREMENTS FOR HEADLIGHTS VERTICAL AIM ADJUSTMENT

Refer to the operating instructions for the headlight adjustment device!

Switch on the headlight adjustment device by pressing any button.

Press F1  button. The shown display screen appears.

Perform the following settings:

1. The passenger car must be selected.
2. Enter the setting dimension for the headlight with buttons F1/F2: - 2, 0 %
3. The right / left-hand traffic must be selected according to the country.
4. Select the fog light type with the F3  button:

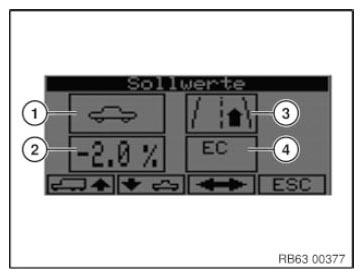

   Fig 1: Display - Headlight Adjustment Screen

   Courtesy of BMW OF NORTH AMERICA, INC.
   • EC:  for halogen fog lights
   • EC LED:  for LED fog lights

The adjusted values are adopted for future measurements.

Press the button for the applicable side of the vehicle (1) briefly.  The measured values are shown in the display. Symbol (2) will be displayed.

When the fog light has been adjusted correctly, "OK" will be displayed:

• OK (3): The setting is correct. However, a more accurate adjustment is possible.
• OK (4): The setting is absolutely correct. A more accurate adjustment is no longer possible.

When a fog light adjustment is incorrect, arrows (5) will be displayed. Use the arrows (5) TO ADJUST THE FOG LIGHT .
