63 31 178 Removing and installing/replacing LED for storage box

Necessary preliminary tasks

Pull LED for storage box (1) in direction of arrow out of storage box (2).

Feed wiring harness (3) out of storage box (2) and remove LED for storage box (1).

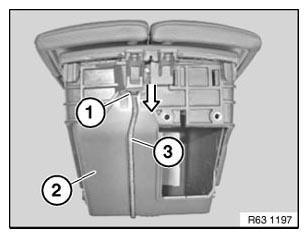

Fig 1: Pulling LED Out Of Storage Box

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Note installation position of LED for storage box (1). Light outlet side must be positioned in direction of storage box (2).

Make sure wiring harness (3) is correctly laid on storage box (2).
