61 11... Remove and install / replace the HSD cable for the Top View camera in the exterior mirror, left or right

Read and comply with notes on HANDLING WIRING HARNESSES AND CABLES .

NOTE: HSD cable length: 380 mm

Necessary preliminary tasks:

REMOVE PROTECTIVE CAP ON LEFT OR RIGHT EXTERIOR MIRROR .

REMOVE EXTERIOR MIRROR FROM LEFT OR RIGHT FRONT DOOR .

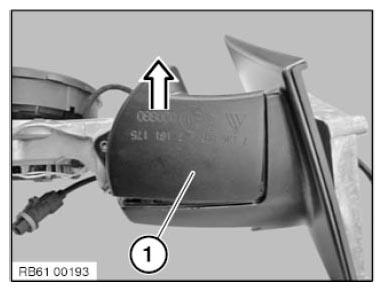

Lever out the cover (1) in direction of arrow.

Fig 1: Removing Cover
G08530228Courtesy of BMW OF NORTH AMERICA, INC.

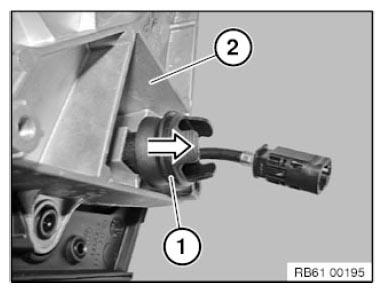

Pull the rubber grommet including internal connector (1) out of the mirror housing (2) in direction of arrow.

Fig 2: Pulling Rubber Grommet Including Internal Connector Out Of Mirror Housing
G08530229Courtesy of BMW OF NORTH AMERICA, INC.

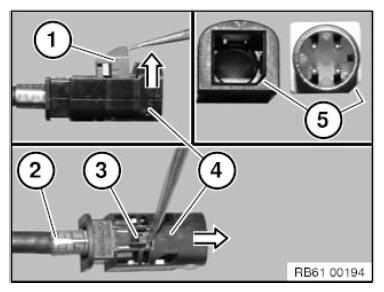

Unlock the lock (1) in direction of arrow with suitable tool.

IMPORTANT: Risk of damage!

Unlock the lock (3) carefully  with a suitable tool. Pull the connector housing (4) off the HSD cable (2) in direction of arrow.

Installation note:

Pay attention to encoding (5)!

Fig 3: Pulling Connector Housing Of Line
G08530230Courtesy of BMW OF NORTH AMERICA, INC.

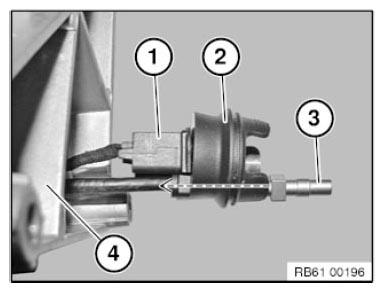

Feed the HSD cable (3) out of the rubber grommet (2).

NOTE: Leave the rubber grommet (2) on the connector (1).

Feed the HSD cable (3) out of the mirror housing (4).

Fig 4: Feeding HSD Cable Out Of Mirror Housing
G08530231Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

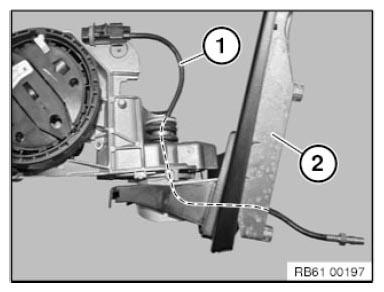

The HSD cable (1) is routed in the mirror housing (2) as shown.

Fig 5: Identifying HSD Cable And Mirror Housing
G08530232Courtesy of BMW OF NORTH AMERICA, INC.
