M Head-up Display

The head-up display can be change to the M display.

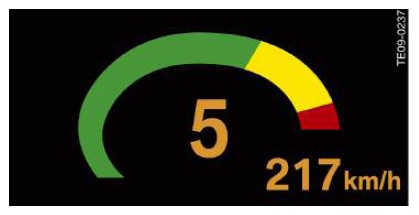

Fig 1: Display - M Specific Head-Up

Courtesy of BMW OF NORTH AMERICA, INC.

The display/indicators of the M HUD is the same as in M5/M6:

• Rev counter band
• Shift lights function
• Gearshift range (gear)
• Vehicle speed

Activation of the M HUD is also the same as on M5/M6.

After configuration in the M Drive menu, activation of the M HUD is done by pushing the M button on the steering wheel or by means of a selection in the HUD-up configuration menu.
