65 50... Removing and installing/replacing IR board for rear cabin monitor

Necessary preliminary tasks

• Remove trim for rear cabin AT FRONT AND REAR BASE .

Release electric cable (1) from guides.

Installation:

Ensure correct cable routing.

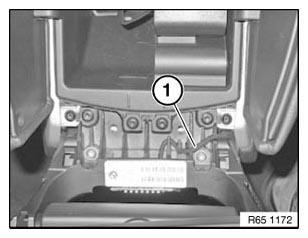

Fig 1: Identifying Electric Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove IR board and disconnect associated plug connection.

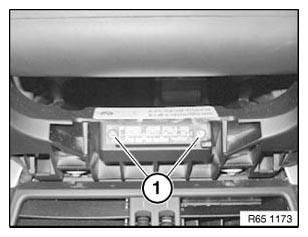

Fig 2: Identifying IR Board Screws

Courtesy of BMW OF NORTH AMERICA, INC.
