65 50... Removing and installing/replacing trim for rear cabin monitor base in middle

Special tools required:

Important!

Trims may only be replaced in pairs so as to avoid differences in color.

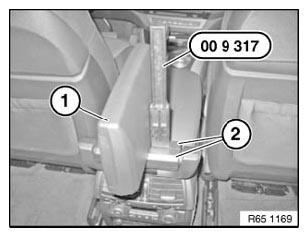

Move rear cabin monitor (1) into position illustrated.

Unclamp and remove trims (2) with special tool 00 9 317 .

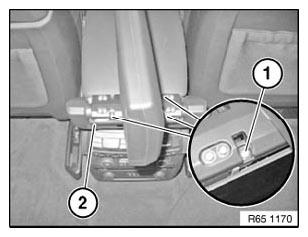

Release screws (1) and remove trim (2) in downward direction.

Fig 1: Removing Rear Monitor Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Identifying Slim Down Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

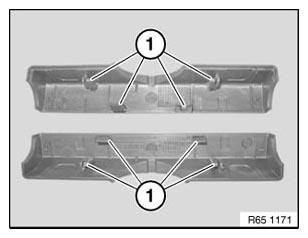

Retaining tabs (1) must not be damaged

Fig 3: Identifying Retaining Tabs

Courtesy of BMW OF NORTH AMERICA, INC.
