61 62 115 Replacing spray nozzle for rear window washer unit

Necessary preliminary tasks

• Remove AUXILIARY BRAKE LIGHT .

Disconnect hose connection (1).

Expand catch (2) and pull spray nozzle (3) out of auxiliary brake light.

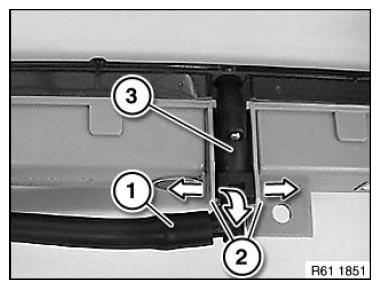

Fig 1: Pulling Spray Nozzle Out Of Auxiliary Brake Light

Courtesy of BMW OF NORTH AMERICA, INC.
