67 11 555 Removing and installing/replacing servodrive for tank filler flap

Necessary preliminary tasks:

Feed out emergency release mechanism (1).

Slacken screws (2)

Feed out servodrive (3) in direction of arrow and disconnect associated plug connection.

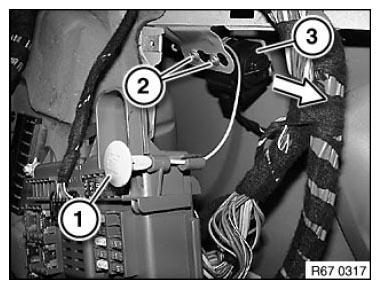

Fig 1: Removing Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Turn sleeve (1) with a suitable tool (e.g.: pointed pliers) approx. 45° in direction of arrow and pull out of cover housing (2).

Fig 2: Pulling Cover Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide sleeve (1) over locking pin (2).

Make sure sleeve (1) is correctly engaged in cover housing (3).

Fig 3: Sliding Sleeve Over Locking Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (1).

Disengage emergency actuation pull strap (2) from retainer (5) and remove towards front.

If necessary, unclip locking pin (3) in direction of arrow from servodrive for tank filler flap (4).

Fig 4: Disconnecting Locking Pin From Tank Filler Flap

Courtesy of BMW OF NORTH AMERICA, INC.
