51-3100 Tool

0492636 513100 Tool MW

NOTE: For fitting of trim on the door window frame [discontinued]

Consisting of:

= 0492637 Handle
NOTE: [Discontinued]
= 0492638 Pliers
NOTE: For bending up the sheet metal angle [discontinued]

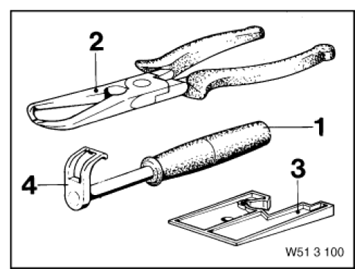

Fig 1: Identifying Tool (0492636)
Courtesy of BMW OF NORTH AMERICA, INC.
= 0492639 Gauge
NOTE: (Test gauge) For checking and adjusting the sheet metal angle on the window frame [discontinued]
= 0492640 Clip
NOTE: (Installation bracket) For roll up of sheet metal angle [discontinued]
