51-0100 Device

0494821 510100 Device MW

NOTE: (Portal crane for window glass) Portal crane for exact installation of front, rear, and side windows. Exact alignment even in event of very high glass weights. [Released]

SI number

06 04 03 (046)

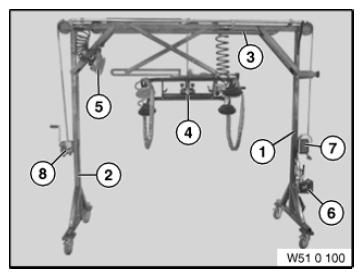

Fig 1: Identifying Device (0494821)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

= 0494847 Support
NOTE: (Right support right) portal crane. No longer available separately [Blocked]
= 0494848 Support
NOTE: (Left support) Portal crane. No longer available separately [Blocked]
= 0494849 Bridge
NOTE: No longer available separately [Blocked]
= 0494850 Fixture
NOTE: (windscreen/rear window support) Portal crane. No longer available separately [Blocked]
= 0494851 Fixture
NOTE: (Side window fixture) for portal crane Discontinued, only available as part of complete tool [Cannot be ordered individually]
= 0494852 Pump
NOTE: (Vacuum pump) for portal crane Discontinued, only available as part of complete tool [Cannot be ordered individually]
= 0494853 Cable winch
NOTE: for windshield/rear window fixture on portal crane Discontinued, only available as part of complete tool [Cannot be ordered individually]
= 0494854 Cable winch
NOTE: for side window fixture on portal crane Discontinued, only available as part of complete tool [Cannot be ordered individually]
= 0494855 Suction cup
NOTE: (1 pieces) for portal crane. Can be ordered separately again via BMW ordering system since 08/2011 - 83 30 0 494 855. [Released]
