51 24 280 Removing and installing/replacing bottom left or right lock support for rear lid

Necessary preliminary tasks

• Remove TRIM ON D-PILLAR AT BOTTOM .

Open rear lid (1) only until screw (2) is accessible (risk of injury by spring tension).

Release screw (2) with rear lid in this position.

Tightening torque 51 24 7AZ .

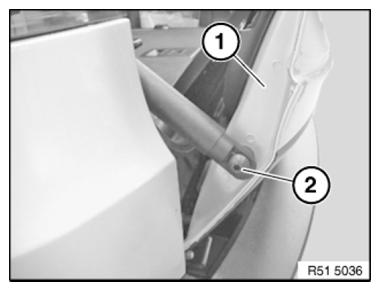

Fig 1: Identifying Rear Lid And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and remove support (2).

Tightening torque 51 24 7AZ .

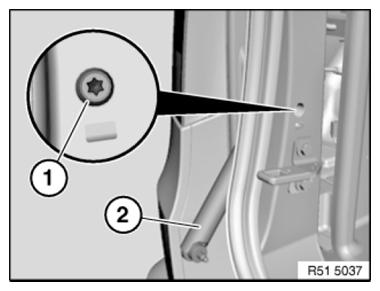

Fig 2: Identifying Rear Lid Lock Support And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
