51 24 120 Removing and installing/replacing left or right lock for rear lid lower section

Necessary preliminary tasks

• Remove TRIM FOR REAR LID LOWER SECTION .

Security vehicles:

• Remove rear lid lower section armour-plating

Disconnect Bowden cable (1 or 2).

1. Bowden cable for right lock
2. Bowden cable for left lock

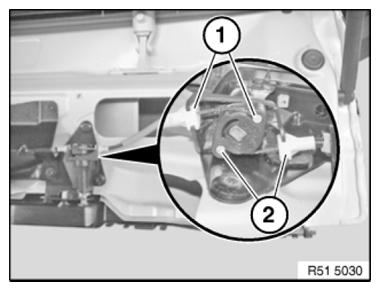

   Fig 1: Identifying Bowden Cables

   Courtesy of BMW OF NORTH AMERICA, INC.

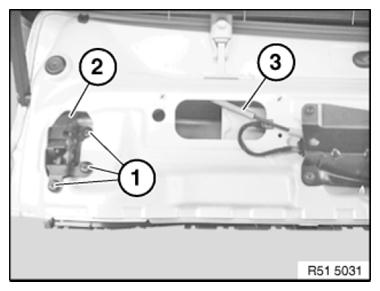

Release screws (1).

Feed out lock (2) with Bowden cable (3).

Installation:

Make sure Bowden cable (3) is in correct position.

Tightening torque 51 24 2AZ .
