51 34 420 Removing and installing/replacing trim on window frame of rear door (front), left or right
Necessary preliminary tasks
- Open rear side window.
- Detach COVER ON DOOR WINDOW FRAME in B-pillar area.

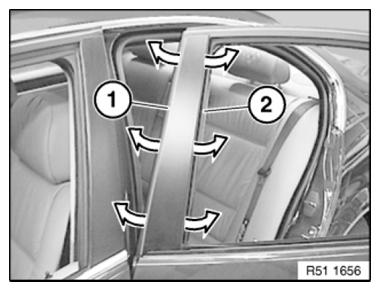

Detach rubber seal (1) and rubber guide (2) from trim.

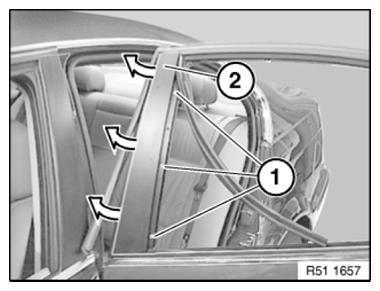

Release screws (1).
Carefully detach trim (2) towards front/top.
Installation:
Moisten rubber window seal prior to fitting with water.
Fitted foam pieces must not be damaged when trim (2) is pushed in.
Installation:

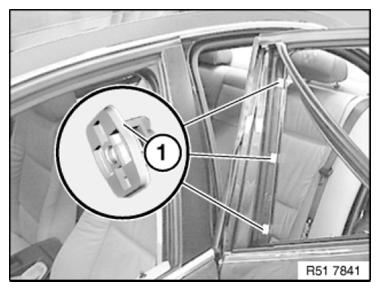

If necessary, replace faulty plastic nuts (1).
Make sure rubber window seal is correctly seated.
Necessary preliminary tasks
- Open rear side window.
Detach rubber seal (1) and rubber guide (2) from trim.
Release screws (1).
Carefully detach trim (2) towards front/top.
Installation:
Fitted foam pieces must not be damaged when trim (2) is pushed in.
Installation:
If necessary, replace faulty plastic nuts (1).
