51 16... Removing and installing insert for right glovebox

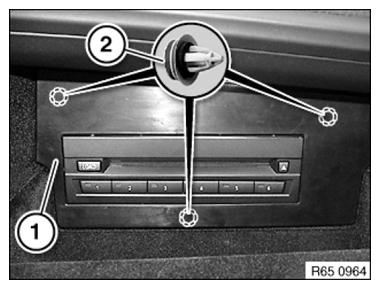

Release trim (1) at clips (2) towards inside.

Fig 1: Identifying Right Glovebox Trim And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

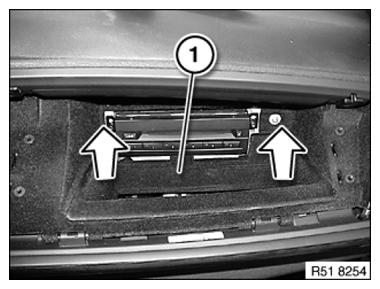

Remove insert (1) towards top.

Fig 2: Removing Insert For Right Glovebox

Courtesy of BMW OF NORTH AMERICA, INC.

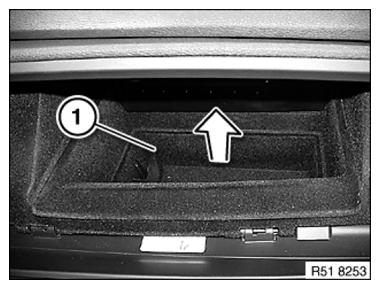

Reach into housing (1) and pull out towards top.

Fig 3: Pulling Out Glovebox Housing

Courtesy of BMW OF NORTH AMERICA, INC.
