41 63 003 Replacing cover bowl

Necessary preliminary tasks:

Remove right REAR WHEEL .
Remove rear right WHEEL ARCH TRIM .
Remove FLAP FOR FUEL FILLER NECK .
Remove SERVODRIVE FOR TANK FILLER FLAP .

NOTE: Carry over schematic representation to the relevant vehicle type.

IMPORTANT: Deformation of the sheet metal flanges in the side panel and the wheel arch results in permanent vehicle leakage. Carry out removal/installation with great care.

Following new body parts are required (refer to Electronic Parts Catalogue ETK):

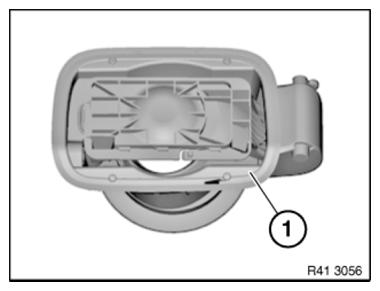

Fig 1: Identifying Filler Bowl

Courtesy of BMW OF NORTH AMERICA, INC.

(1) Filler bowl

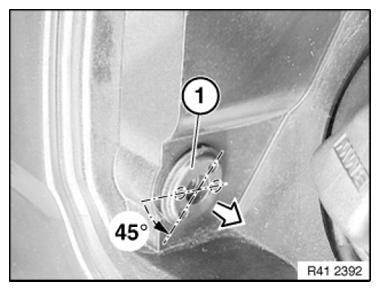

Turn sleeve (1) through approx. 45° and pull out in direction of arrow.

Fig 2: Pulling Out Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

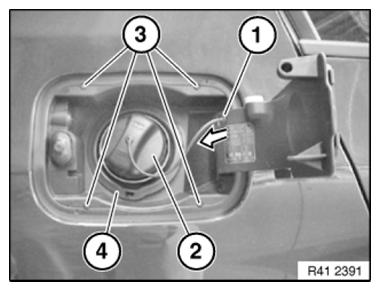

Press retaining strap (1) inwards and lift out (see arrow).

Pierce cover bowl at markings (3) with a small screwdriver.

Remove cover (2).

Fig 3: Removing Retaining Strap

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustrations shows fuel filler pipe removed.

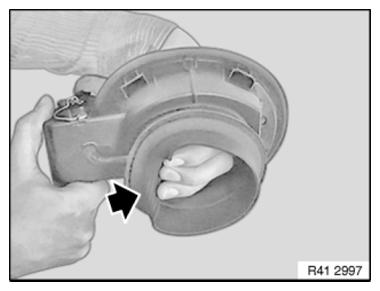

Release rubber seal from sheet metal flange.

Fig 4: Locating Rubber Seal On Sheet Metal Flange

Courtesy of BMW OF NORTH AMERICA, INC.

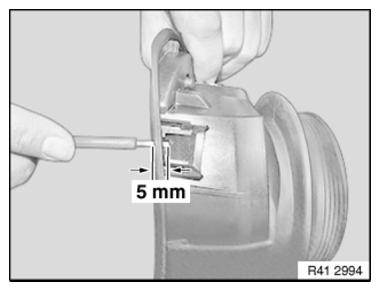

Insert screwdriver to a depth of max. 5 mm and unlock cover bowl catch.

Fig 5: Disconnecting Cover Bowl Catch Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

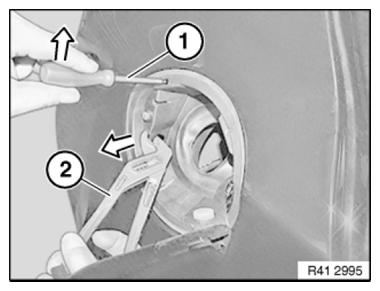

Keep cover bowl tensioned with pliers (2).

Unlock catches individually with screwdriver (1).

Unlock catches in following order:

Top left
Bottom left
Top right
Bottom right

Move screwdriver in opposite direction at both lower catches.

Fig 6: Disconnecting Cover Bowl Catch Using Screwdriver And Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

Close hinge arm (1).

IMPORTANT: Do not damage sheet metal flange of side panel.

Carefully twist out cover bowl (2) at first at rear in direction of arrow from side panel and remove.

Fig 7: Removing Cover Bowl From Side Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Open hinge arm.

Turn sealing sleeve in area of hinge inwards and hold.

Insert cover bowl and engage sealing sleeve over fuel filler pipe.

Fig 8: Opening Hinge Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

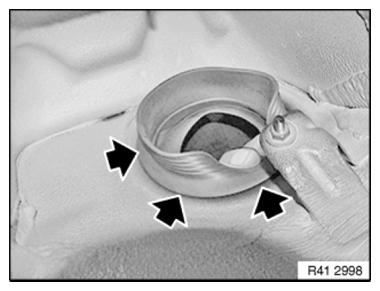

Using fitting aid (1), pull sealing lip (2) over sheet metal flange of wheel arch (3).

Fig 9: Pulling Sealing Lip On Wheel Arch Sheet Metal Flange Using Fitting Aid

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Illustrations shows fuel filler pipe removed.

Check that sealing lip is correctly seated.

Fig 10: Locating Rubber Seal On Sheet Metal Flange

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Cover bowl must snap into place 4 times.

After installing, carefully check cover bowl at clips for secure seating.

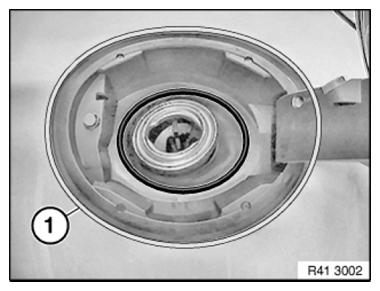

There must be no discernible gap between sealing lip and side panel in area (1).

Fig 11: Identifying Cover Bowl Side Panel

Courtesy of BMW OF NORTH AMERICA, INC.
