Units compartment partition wall, right

Release clip (1).

Unfasten screws (2).

Remove partition wall (3).

Installation note:

If necessary, replace faulty clip (1).

Make sure partition wall is correctly positioned.

Make sure screws are installed in correct positions.

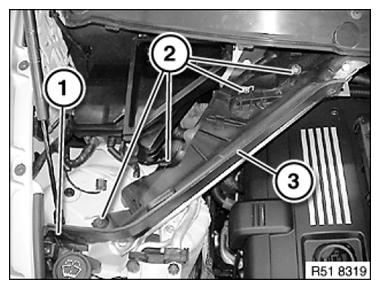

Fig 1: Identifying Partition Wall, Clips And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
