Units compartment partition wall, middle

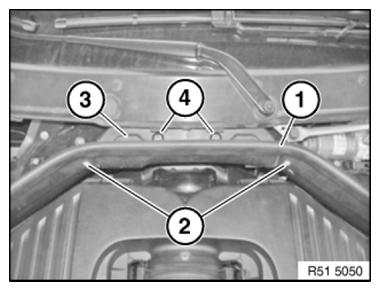

Remove gasket (1) for engine compartment lid.

Release screws (2, 4).

Remove partition wall (3).

Installation note:

Make sure partition wall is correctly positioned.

Fig 1: Identifying Gasket, Partition Wall And Screws
G08529488Courtesy of BMW OF NORTH AMERICA, INC.

Version with N55 engine only:

Seal the units compartment partition wall at the top center.
