Units compartment partition wall, left

Release expansion rivet (1).

Release screws (2, 4).

Left only: Unclip connecting line (3).

Remove partition wall (5).

Installation note:

Replace damaged expanding rivet.

Make sure partition wall is correctly positioned.

Make sure screws are installed in correct positions.

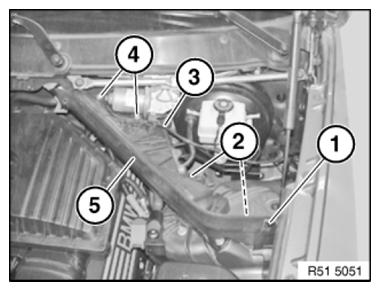

Fig 1: Identifying Expansion Rivet, Partition Wall And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
