51 13 116 Removing and installing/replacing cowl panel cover

Necessary preliminary tasks

• Remove both WINDSCREEN WIPER ARMS .
• Remove both microfilter housing covers  . See 64 31 101 REMOVING AND INSTALLING/REPLACING LEFT MICROFILTER HOUSING COVER or 64 31 106 REMOVING AND INSTALLING/REPLACING RIGHT MICROFILTER HOUSING COVER .

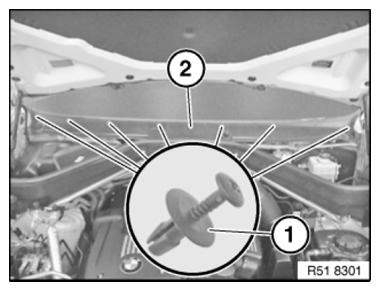

Release clips (1).

Feed out cover (2) towards top.

Installation:

If necessary, replace faulty clips (1) and associated grommets in body.

Installation:

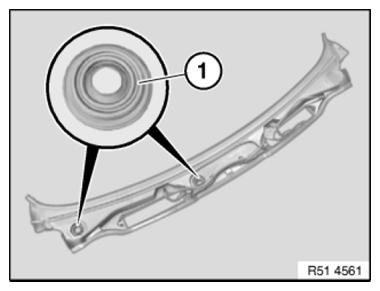

Make sure grommets (1) are correctly seated on wiper pivots.

Grommets (1) for wiper pivots must not be damaged.

Installation:

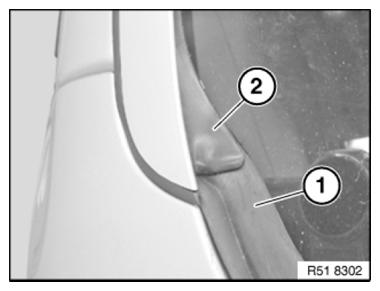

Cowl panel cover (1) must be correctly guided on right and left under windscreen cover (2).
