3.10 Adjusting the window glass

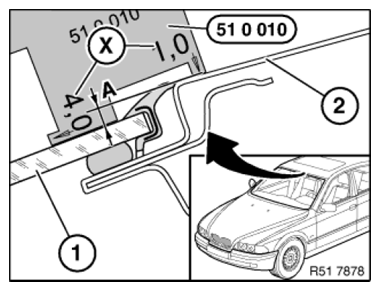

Fig 1: Checking Windscreen Or Rear Window Height Using Special Tool (51 0 010)

Courtesy of BMW OF NORTH AMERICA, INC.

To avoid wind noise, the front and rear windows (1) must be lower than the roof outer skin (2).

Check height of the windscreen or rear window using special tool 51 0 010 .

Dimension (A) of window glass offset, refer to vehicle-specific repair instructions.

1. X = measurement stages 1... 4 mm
