51 47... Removing and installing/replacing storage compartment in luggage compartment on left or right

Necessary preliminary tasks

• Remove FLAP IN LUGGAGE COMPARTMENT  on left or right.

Left side

Take out first-aid kit if necessary.

Remove warning triangle (1).

Release clips (2) and remove storage compartment (3).

Fig 1: Identifying Warning Triangle, Storage Compartment And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Right side

Release clips (1) and feed out storage compartment (2).

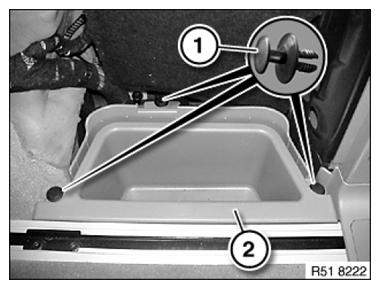

Fig 2: Identifying Storage Compartment And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
