Cover, side, six-cylinder models:

Release screws/nuts (1 and 2).

Feed out cover (3).

Installation note:

Ensure cover (3) is correctly seated.

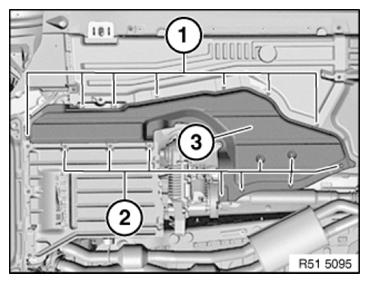

Fig 1: Identifying Side Cover (6 Cylinder Models)
G08529419Courtesy of BMW OF NORTH AMERICA, INC.
