SI number

WARNING: This page is about a different car, the 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

02 01 94 (806)

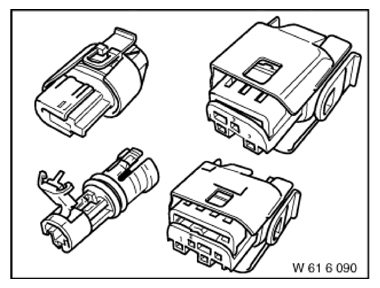

Fig 1: Identifying Supplement (0492893)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

3 = 0495413 Socket housing
NOTE: (Socket housing, 3-pin, round)
1 = 0492894 Socket housing
NOTE: (Socket housing (Elo strand sealing), 2-/3-/4-pin, oval)
2 = 0492895 Pin housing
NOTE: (Pin housing (Elo ELA), 3-pin, round) BMW order numbers: 61 13 1 392 253; 61 13 8 366 249
