13..... Remove the acoustic covers (M57T2 with and without SCR)

Raise acoustic cover and remove in direction of travel.

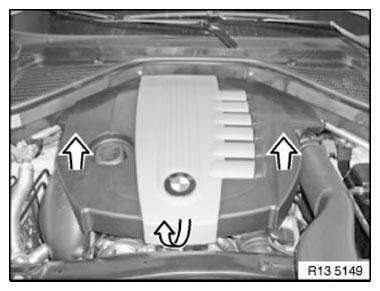

Fig 1: Raising Acoustic Cover

G09954115

Courtesy of BMW OF NORTH AMERICA, INC.
