13 Removing intake duct (N63)

Release expansion rivet (1).

Pull off air intake hose (2) upwards.

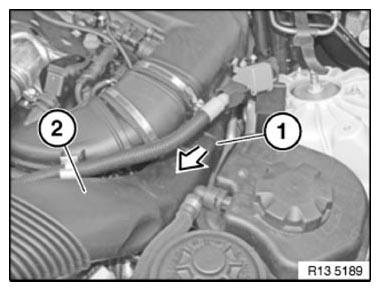

Fig 1: Identifying Expansion Rivet & Air Intake Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Press in catch (1).

Pull off air intake hose (2) in direction of travel.

Fig 2: Identifying Catch & Air Intake Hose

Courtesy of BMW OF NORTH AMERICA, INC.
