13 71 155 Remove clean air pipe (N20)

Release clamps (1).

Tightening torque 13 71 3AZ .

Tightening torque 13 71 4AZ .

Remove top clean air pipe (2).

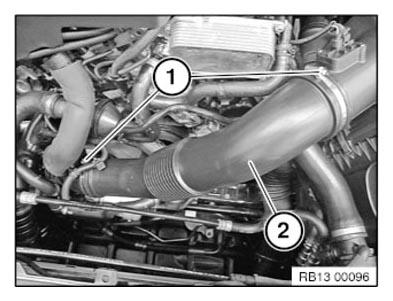

Fig 1: Identifying Clean Air Pipe And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
