51 16 163 Removing and installing/replacing rear center console trim

Special tools required:

IMPORTANT: Risk of damage!

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

For versions without armrest:

Lever out rear center console panel trim (1) with special tool 00 9 325 upwards.

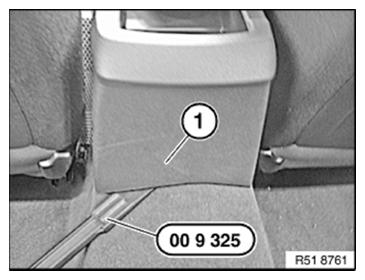

Fig 1: Levering Out Rear Center Console Panel Trim With Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

For versions with armrest:

Move armrest (1) on center console (2) completely forward.

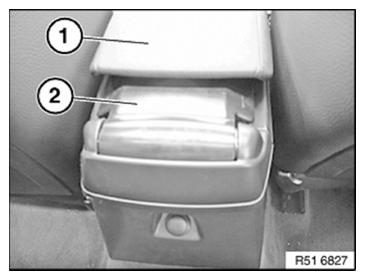

Fig 2: Identifying Center Console And Armrest

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out rear center console panel trim (1) with special tool 00 9 325 upwards.

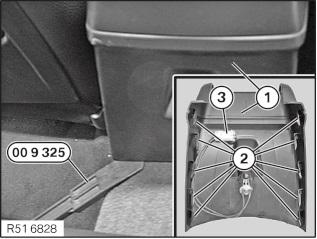

Installation:

Retaining tabs (2) of rear center console trim panel (1) must not be damaged.

If necessary, disconnect plug connection (3).

Remove rear center console trim panel (1).

Replacement

Modify 12 V power socket if necessary.

Fig 3: Levering Out Rear Center Console Panel Trim With Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.
