13 71 000 Removing and installing/replacing intake silencer housing (N20)

Release connector (1) on hot film air mass meter and disconnect.

Release clamp (2).

Tightening torque 13 71 3AZ .

Release screws (3).

Tightening torque 13 71 2AZ .

Pull intake silencer housing (4) off rubber mounts in an upward direction and remove.

Reassemble the vehicle.

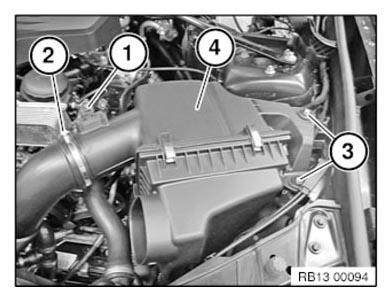

Fig 1: Identifying Intake Silencer Housing, Connector, Clamp And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
