51 49 003 Removing and installing/replacing cover for rear window frame on left or right

Necessary preliminary tasks:

• Remove TRIM FOR REAR LID
• Remove UPPER REAR WINDOW FRAME COVER

Unhook rear shelf line.

Release screw (1).

Unclip trim panel (2) in marked areas are remove by pulling downward.

Installation note:

Replace faulty clips.

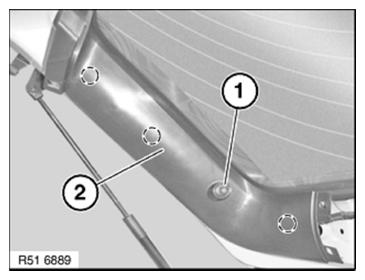

Fig 1: Identifying Trim Panel And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remount clips (1).

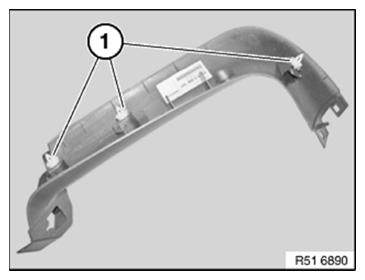

Fig 2: Identifying Trim Panel Clips

Courtesy of BMW OF NORTH AMERICA, INC.
