32 41... Instructions for removing and installing ear clips

Special tools required:

32 1 260

NOTE: The work steps are show on assorted components.
Ear clip must always be replaced.

To remove an ear clip, place special tool 32 1 260 at right angles to ear and cut ear open.

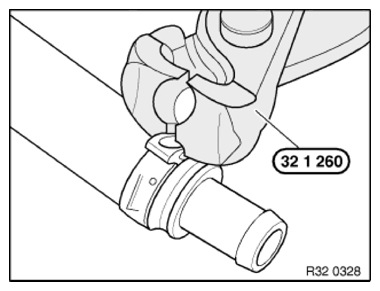

Fig 1: Placing Special Tool 32 1 260 On Axle Shaft

G09892450

Courtesy of BMW OF NORTH AMERICA, INC.

The ear clip can be fitted not only axially but also radially after the hook fastener has been opened.

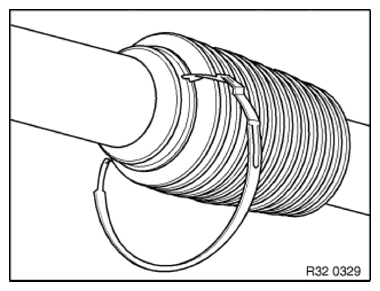

Fig 2: Identifying Ear Clips

G09892451

Courtesy of BMW OF NORTH AMERICA, INC.

Attach hook fastener and press ear together with special tool 32 1 260 .

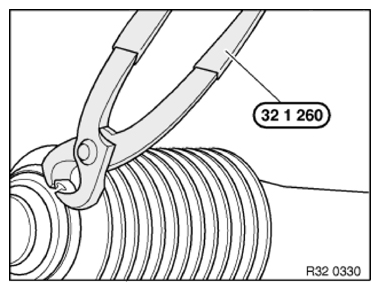

Fig 3: Attaching Hook Fastener Using Special Tool 32 1 260

G09892452

Courtesy of BMW OF NORTH AMERICA, INC.

The diagonal cutting pliers of special tool 32 1 260 can be used in areas which are difficult to access.

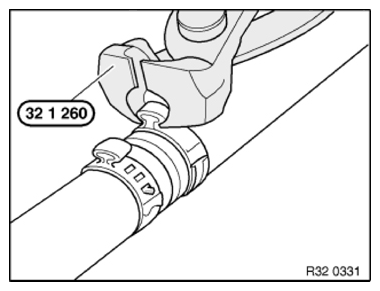

Fig 4: Fitting Diagonal Cutting Pliers Of Special Tool 32 1 260

G09892453

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Gap (A) max. 1 mm!

Fig 5: Checking Ear Clip Gap
