31 12 080 Removing and installing/replacing both tension struts

IMPORTANT: On M models replace trailing links in pairs.

Necessary preliminary work:

REMOVE front underbody protection.
Remove BOTH FRONT WHEELS .
Release WHEEL ARCH COVER on front left and right bottom and press to one side (only E82/E88/E92/E93).

Remove pedestrian protection (only E82/E88/E92/E93 from 03/2012):

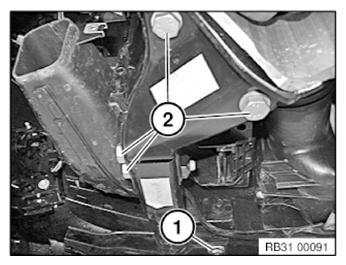

Slacken screw (1) on front pedestrian protection.

Release screws (2) from deformation element and adapter.

Tightening torque 51 11 7AZ/8AZ .

Fig 1: Identifying Front Pedestrian Protection Screws

Courtesy of BMW OF NORTH AMERICA, INC.

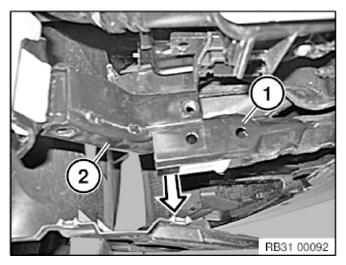

Press deformation element (1) towards the bottom and remove adapter (2) towards the top.

Fig 2: Removing Adapter

Courtesy of BMW OF NORTH AMERICA, INC.

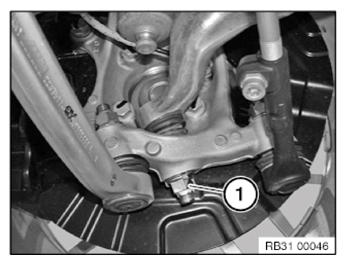

Release nut (1), if necessary, grip at inner Torx socket.

Tightening torque 31 12 2AZ .

Installation note:

Keep tension strut to swivel bearing connection clean and free from oil and grease.

Replace self-locking nut.

Fig 3: Identifying Inner Torx Socket Nut

Courtesy of BMW OF NORTH AMERICA, INC.

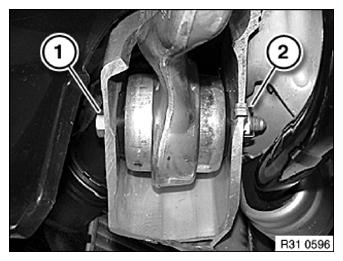

Release bolt (1) and remove tension strut.

Tightening torque 31 12 1AZ

Raise locking nut (2) at area of bore and pull off from front axle support.

Installation note:

Replace locking nut.

Tighten down screw connection in NORMAL POSITION .

Fig 4: Identifying Tension Strut Locking Nut

Courtesy of BMW OF NORTH AMERICA, INC.
