31 12 000 Removing and installing/replacing left or right wishbone

NOTE: If the wishbone is detached from the front axle support, it will be necessary to carry out the wheel alignment procedure  . See 32 00 150 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or 32 00 155 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD .

Necessary preliminary tasks:

Outer M3, M Coupe:

If necessary, remove jointed rod of ride height sensor from wishbone.

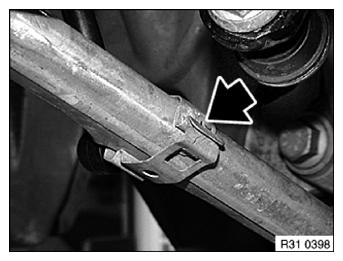

Fig 1: Locating Jointed Rod Of Ride Height Sensor
G09892335Courtesy of BMW OF NORTH AMERICA, INC.

M3, M Coupe:

Slacken nut (1).

Remove jointed rod (2) from wishbone.

Installation note:

Sensor lever (3) must point from ride height sensor to left front wheel.

Tightening torque 37 14 3AZ

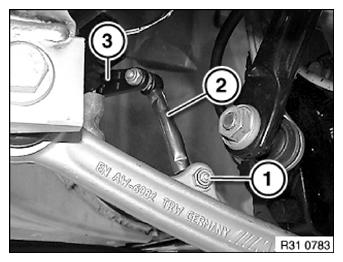

Fig 2: Identifying Slacken Nut, Sensor Lever And Jointed Rod
G09892336Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1), if necessary, counter-hold at inner Torx (T40).

Installation note:

Keep wishbone to swivel bearing connection clean and free from oil and grease.

Replace self-locking nut.

Tightening torque 31 12 4AZ .

Fig 3: Identifying Counter-Hold At Inner Torx Nut
G09848995Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Remove screw towards front; if necessary remove bracket (2) with ride-height sensor.

Take off wishbone.

Installation note:

Screw head must point in direction of travel.

Replace self-locking nut.

Tighten down bolt connection in NORMAL POSITION .

Tightening torque 31 12 3AZ .

Fig 4: Removing Bracket With Ride-Height Sensor
G09848996Courtesy of BMW OF NORTH AMERICA, INC.

After installation:
