61 31 038 Removing and installing (replacing) switch for passenger airbag deactivation

WARNING: Read and comply with SAFETY REGULATIONS for handling airbag modules and pyrotechnical belt pretensioners.
Incorrect handling can activate airbag and cause injury.

Necessary preliminary tasks:

Disconnect BATTERY NEGATIVE LEAD
REMOVE SIDE COVER ON INSTRUMENT PANEL

Unlock catches (1) and feed out switch for passenger airbag deactivation (2) to front of cover.

Installation:

Make sure switch for passenger airbag deactivation (2) is correctly seated in cover.

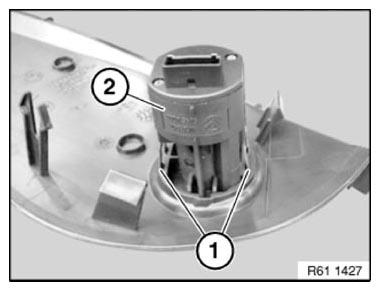

Fig 1: Identifying Passenger Airbag Deactivation And Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation instructions for replacement only for E63/E64 with production date up to 01/2010:

A groove must be filed in the trim at location (1).

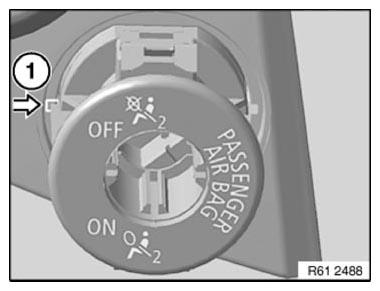

Fig 2: Locating Groove Fitting Location

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove LOCK CYLINDER FOR PASSENGER AIRBAG DEACTIVATION .
