51 75 010 Removing and installing/replacing left or right steering assembly cover

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT UNDERBODY PROTECTION

Slacken all screws/snap fasteners.

Tightening torque 51 75 1AZ .

Lever out expanding rivets (1).

Removing steering assembly cover (2).

Installation note:

Replace faulty expanding rivets (1).

Make sure steering assembly cover (2) is correctly seated.

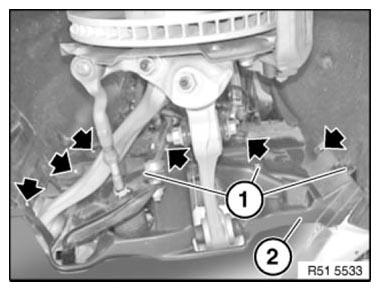

Fig 1: Locating Steering Assembly Cover Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

From April 2009 the snap fasteners are discontinued and replaced by a conventional screw connection.
