51 43 004 Removing and installing/replacing decorative strip on left or right side trim panel

Special tools required:

Starting at front, detach decorative strip (1) with special tool 00 9 317 from clips (2) and remove.

Installation:

Clips (2) on decorative strip (1) must not be damaged.

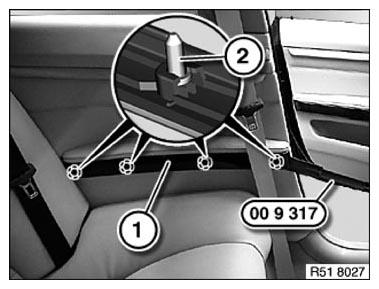

Fig 1: Detaching Decorative Strip Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Released or damaged Hutfix clips (1) must be replaced.

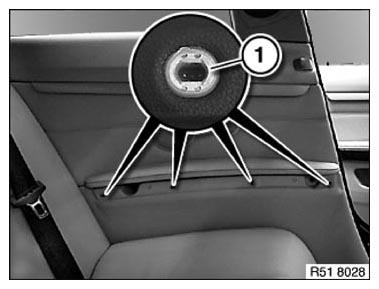

Fig 2: Identifying Hutfix Clips

Courtesy of BMW OF NORTH AMERICA, INC.
