51 44 150 Replacing trim for front roofliner

Necessary preliminary tasks:

• Open convertible top or retractable hardtop.
• Remove FRONT ROOFLINER/ROOF SWITCH CENTER TRIM INSERT .
• Remove both front mirror lights.
• Remove both SUN VISORS .
• Remove both TRIMS FOR FRONT ROOF PILLAR .

E93 only:

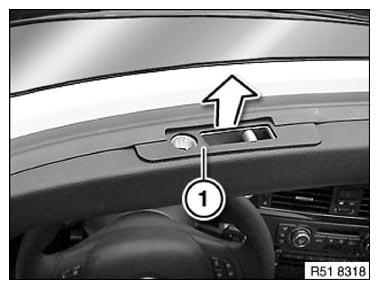

Unclip trim (1) on left/right towards top.

Installation:

Replace trim (1).

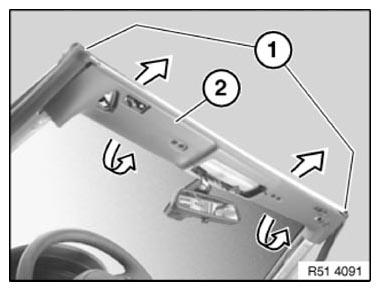

Detach mucket (1) in area of trim (2).

Pull back trim (2) in direction of arrow and remove.

Installation:

Make sure mucket (1) is correctly seated.
