51 41 018 Replacing speaker trim on front left or right door trim panel
Necessary preliminary tasks:
- Remove 65 13 070 REMOVING AND INSTALLING/REPLACING SPEAKER (MIDRANGE SPEAKER IN DOOR TRIM PANEL AT FRONT) .

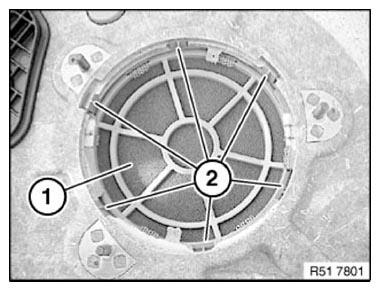

Carefully release speaker trim (1) at catches (2) and remove in outwards direction.
NOTE:
Catches (2) are held in position by installed speaker.
Installation:
Make sure catches (2) are in correct position. Speaker trim (1) can only be installed in one position.
Installation:

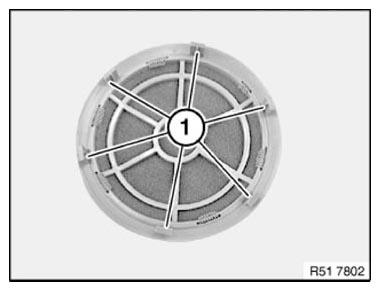

Catches (1) must not be damaged or missing.
